Technical Specifications
Roof Panel Dimensions
Full profile dimensions, material gauges, and manufacturing tolerances for all OneKEpp panel types. All panels are custom-cut on-site to your exact measurements.
Panel Profiles
OneKEpp produces two panel profiles. All dimensions are nominal — see the tolerances section below for manufacturing allowances.
1-1/2" Standing Seam
SS-38
Concealed-fastener standing seam panel with a 1-1/2" (38 mm) rib height. Clean, modern appearance with superior weather resistance. Ideal for residential and commercial roofing.
| Rib height | 1-1/2" (38 mm) |
| Coverage width | 8" – 24" (203 – 610 mm) |
| Fastener type | Concealed clip |
| Material thickness | 26 ga – 22 ga (0.45 – 0.75 mm) |
| Panel length | Custom cut on-site |

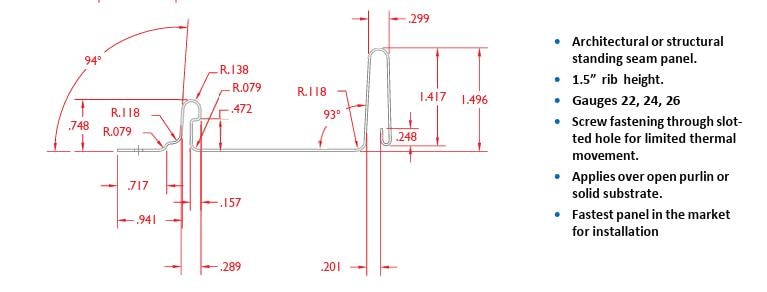

1-1/2" Snap Lock
SL-38
Snap-lock panel with a 1-1/2" (38 mm) rib height. Panels snap together without exposed fasteners for a fast, clean installation. Suitable for roofing and wall cladding.
| Rib height | 1-1/2" (38 mm) |
| Coverage width | 8" – 24" (203 – 610 mm) |
| Fastener type | Snap-lock (concealed) |
| Material thickness | 26 ga – 22 ga (0.45 – 0.75 mm) |
| Panel length | Custom cut on-site |
Material Options
All profiles are available in the following substrate and coating options. Material selection depends on your application, environment, and aesthetic requirements.
Pre-painted Steel (SMP)
Available gauges
Cost-effective painted option. Good colour retention and flexibility. 25-year fade warranty on SMP finish.
Pre-painted Steel (PVDF)
Available gauges
Full colour range available. 40-year fade warranty on PVDF finish.
Galvalume® Steel (AZ150)
Available gauges
Superior corrosion resistance. Recommended for coastal and high-humidity environments.
Galvanized Steel (G90)
Available gauges
Standard substrate for most applications.
Copper
Available gauges
Premium architectural material. Natural patina progresses from bright copper to brown to classic verdigris green.
Manufacturing Tolerances
OneKEpp panels are produced to the following standard tolerances. Tighter tolerances are available on request for precision applications.
| Dimension | Tolerance |
|---|---|
| Panel length | ± 3 mm (± 1/8") |
| Coverage width | ± 2 mm (± 5/64") |
| Squareness (diagonal) | ± 4 mm per 3 m (± 5/32" per 10') |
| Camber (bow) | ≤ 6 mm per 3 m (≤ 1/4" per 10') |
| Rib height | ± 1.5 mm (± 1/16") |
| Material thickness | ± 0.03 mm (± 0.001") |
All panels are custom-cut on-site using the Schlebach Quadro PLUS roll forming machine. Because panels are produced to your exact measurements rather than pre-cut at a factory, field trimming is rarely required.
Need a specific profile or gauge?
Contact us to discuss your project requirements. We can advise on the right profile, material, and gauge for your application and climate zone.
